>>Features
(1) High spatiotemporal resolution.
(2) Wide range of imaging targets, large imaging field of view (FOV), ultrafast imaging speed.
(3) No relative displacement between the imaging target and the ultrasonic transducer.
(4) Multi-wavelength lasers enable a wider range of applications.
>>Application Objects
Studies of hemodynamics in small animals and molecular imaging.
>>Product Model

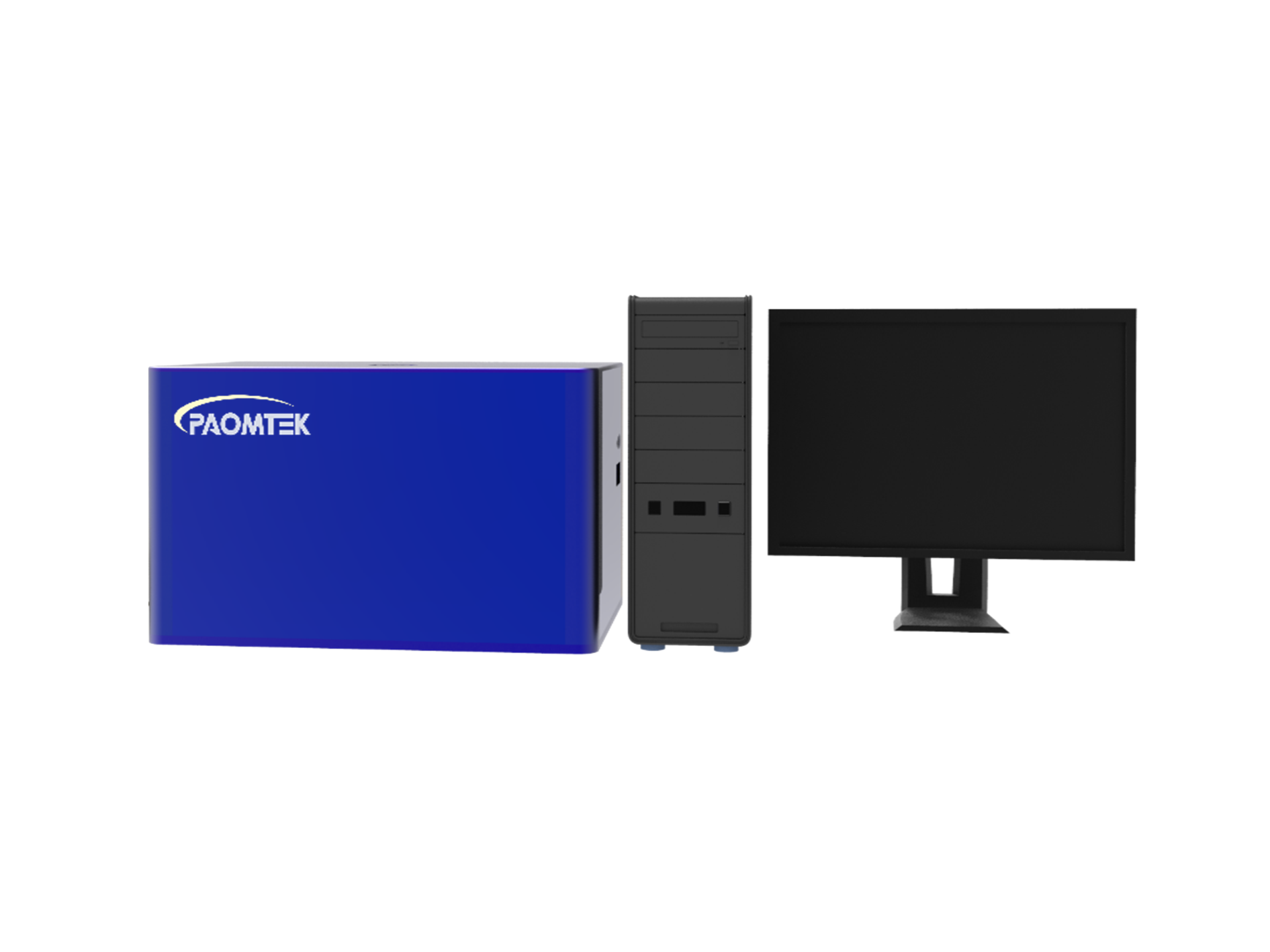

The recommended dual-wavelength desktop photoacoustic microscope has laser output wavelengths of 532 nm and 770-840 nm, and different wavelength combinations can be selected according to your needs. In addition, the three-wavelength desktop photoacoustic microscope can be customized. The specific parameters of products are as follows：
| Model Number | VIS-NIR |
| Laser output wavelength (nm) | 532
| 770-840 | 1064 |
| FOV（mm） | 10 | 10 | 10 |
| Imaging speed（s/Volume） | 22 | 22 | 22 |
| Lateral resolution（μm） | 11.8 | 12-14 | 22 |
| Axial resolution（μm） | 130 | 130 | 130 |
| Size（mm*mm*mm） | 560*410*300 | 560*410*300 | 560*410*300 |
| Power supply | 220 V, 50 Hz | 220 V, 50 Hz | 220 V, 50 Hz |
