>>Features
(1) High spatiotemporal resolution.
(2) Wide range of imaging targets, large imaging field of view (FOV).
(3) No relative displacement between the imaging target and the ultrasonic transducer.
>>Application Objects
Studies of hemodynamics in small animals (mouse, rat).
>>Product Model

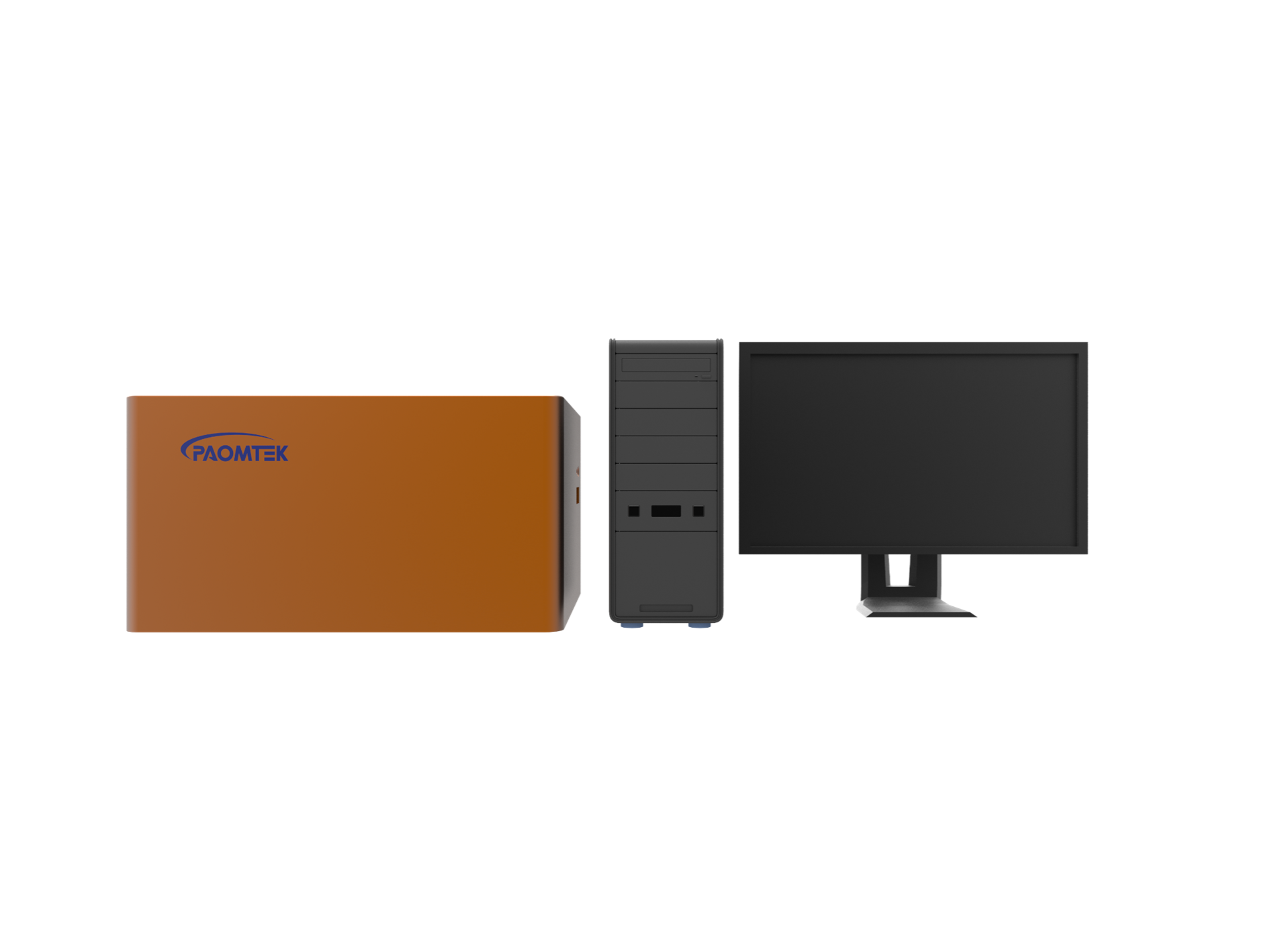

The recommended product model is VIS-50, other models can be selected as needed. The specific parameters of single wavelength products are as follows：
| Model Number | VIS-10 | VIS-50 | VIS-200
|
| FOV（mm） | 10 | 10 | 10 |
| Imaging speed（s/Volume） | 100 | 22 | 6 |
| Lateral resolution（μm） | 11.8 | 11.8 | 11.8 |
| Axial resolution（μm） | 130 | 130 | 130 |
| Size（mm*mm*mm） | 560*410*300 | 560*410*300 | 560*410*300 |
| Power supply | 220 V, 50 Hz | 220 V, 50 Hz | 220 V, 50 Hz |
